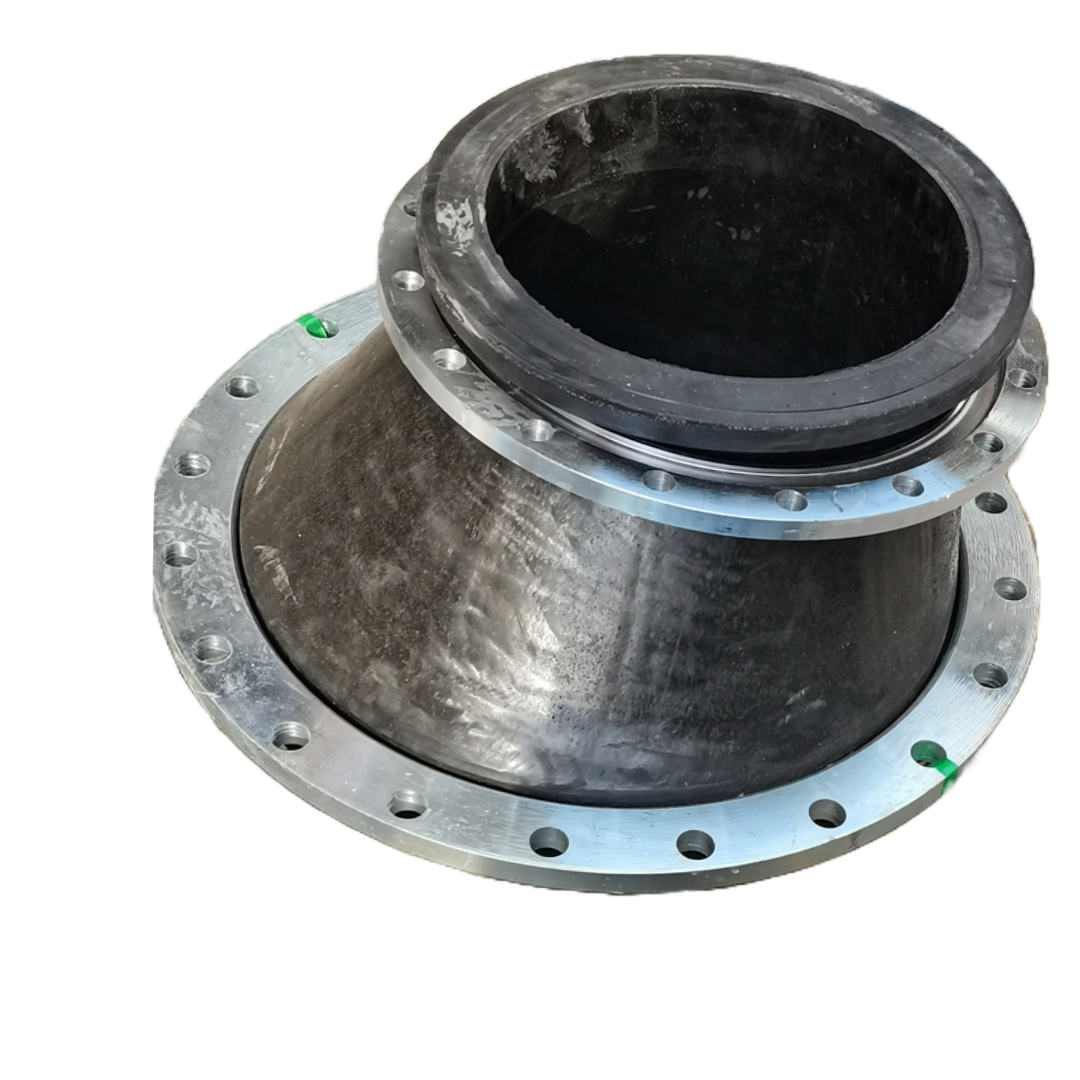

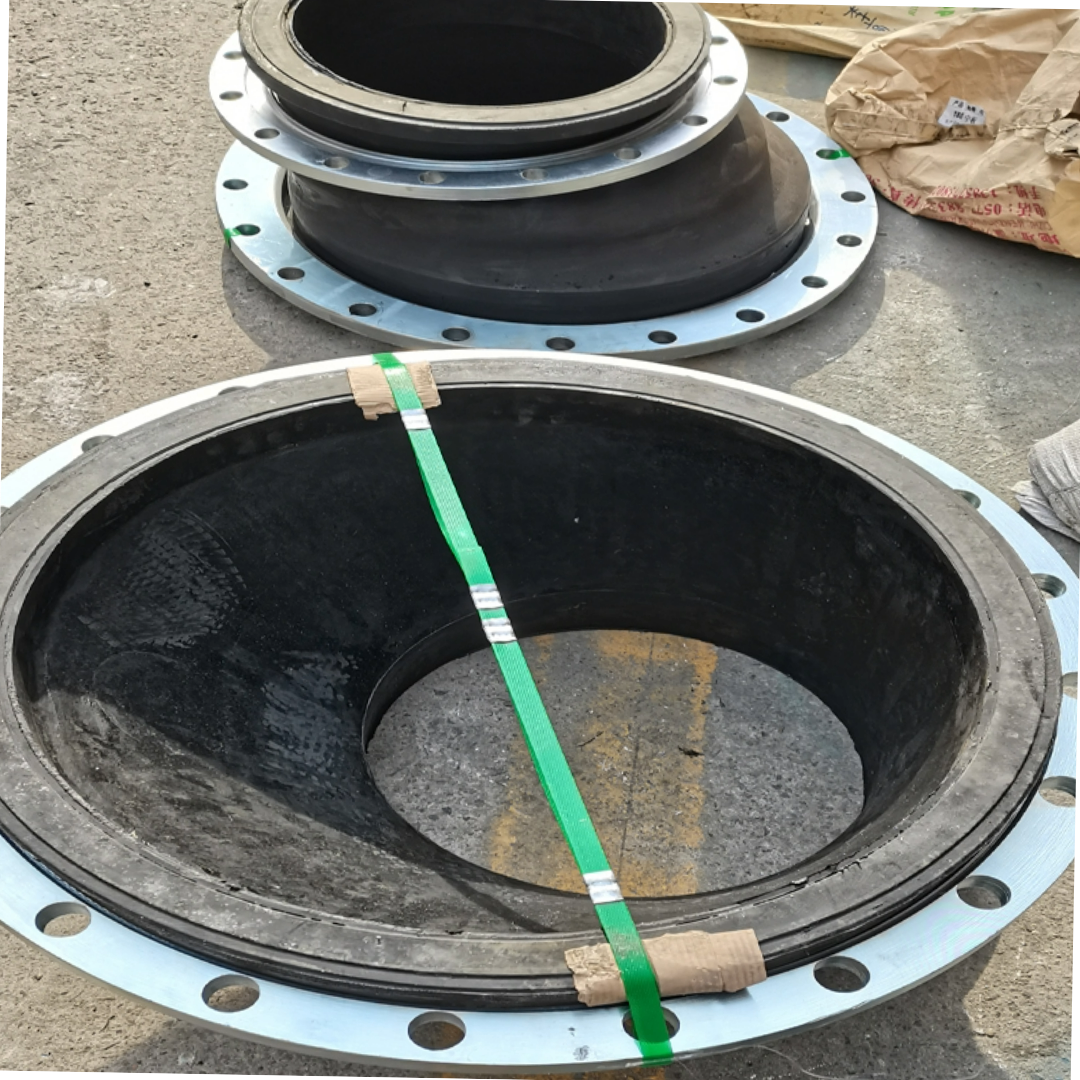

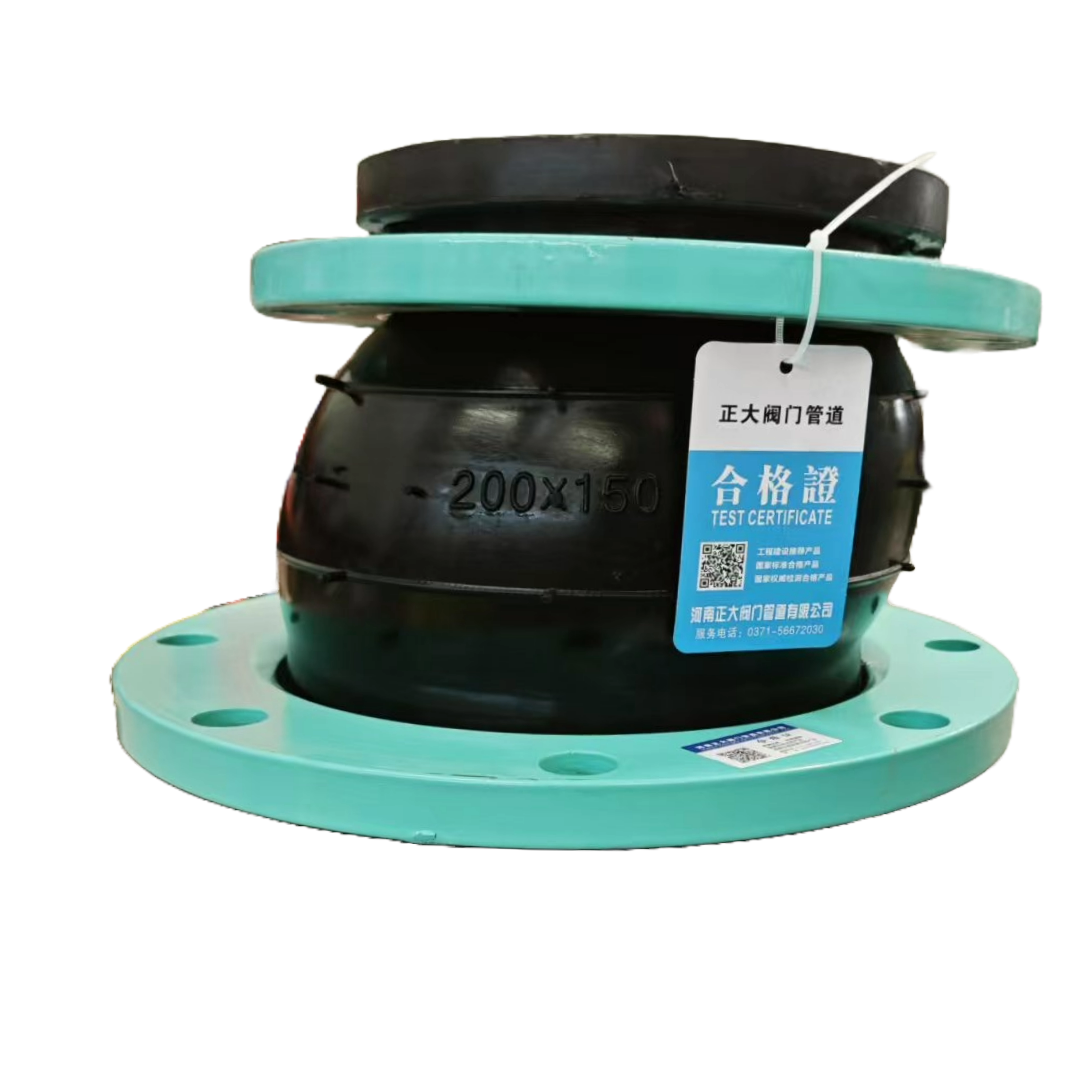

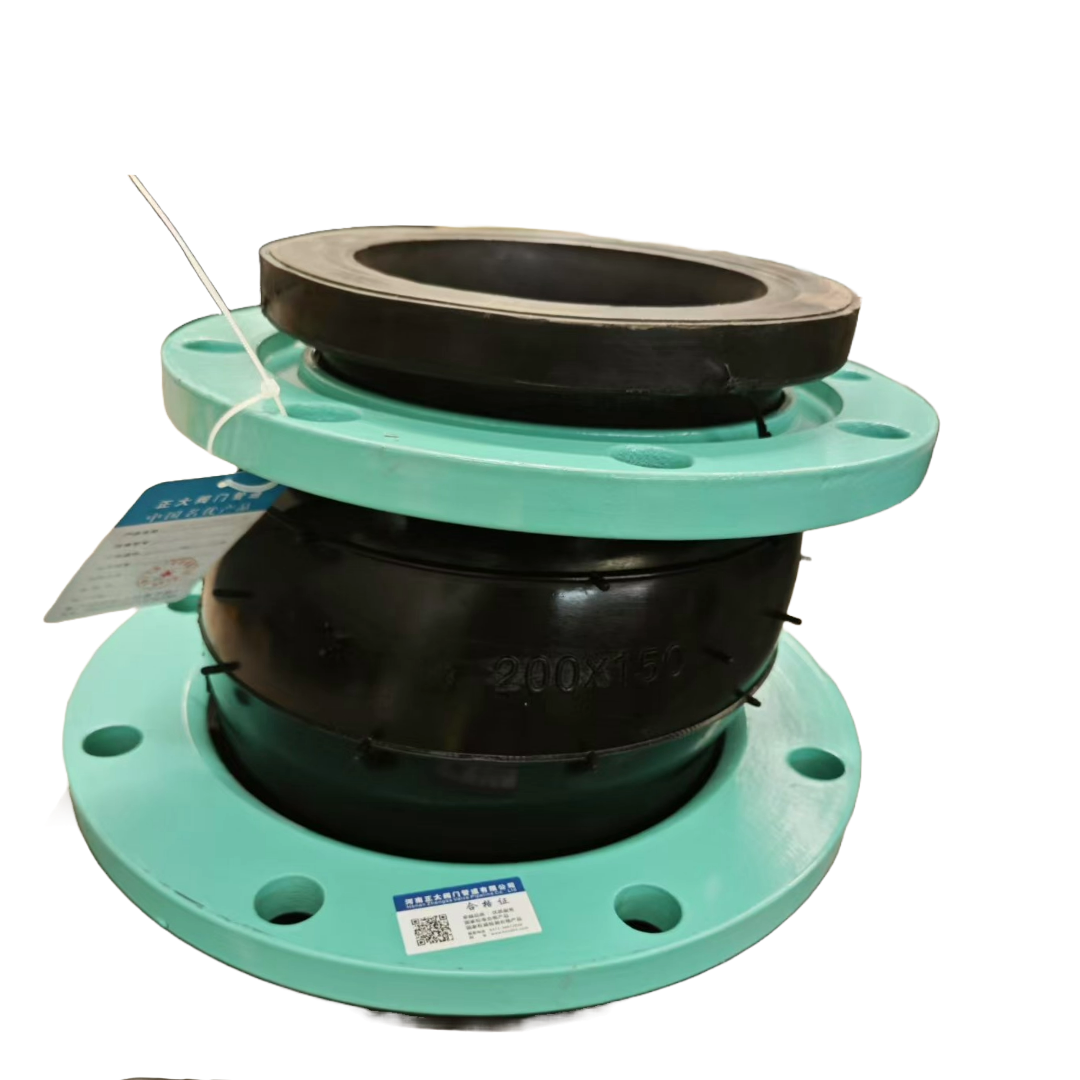

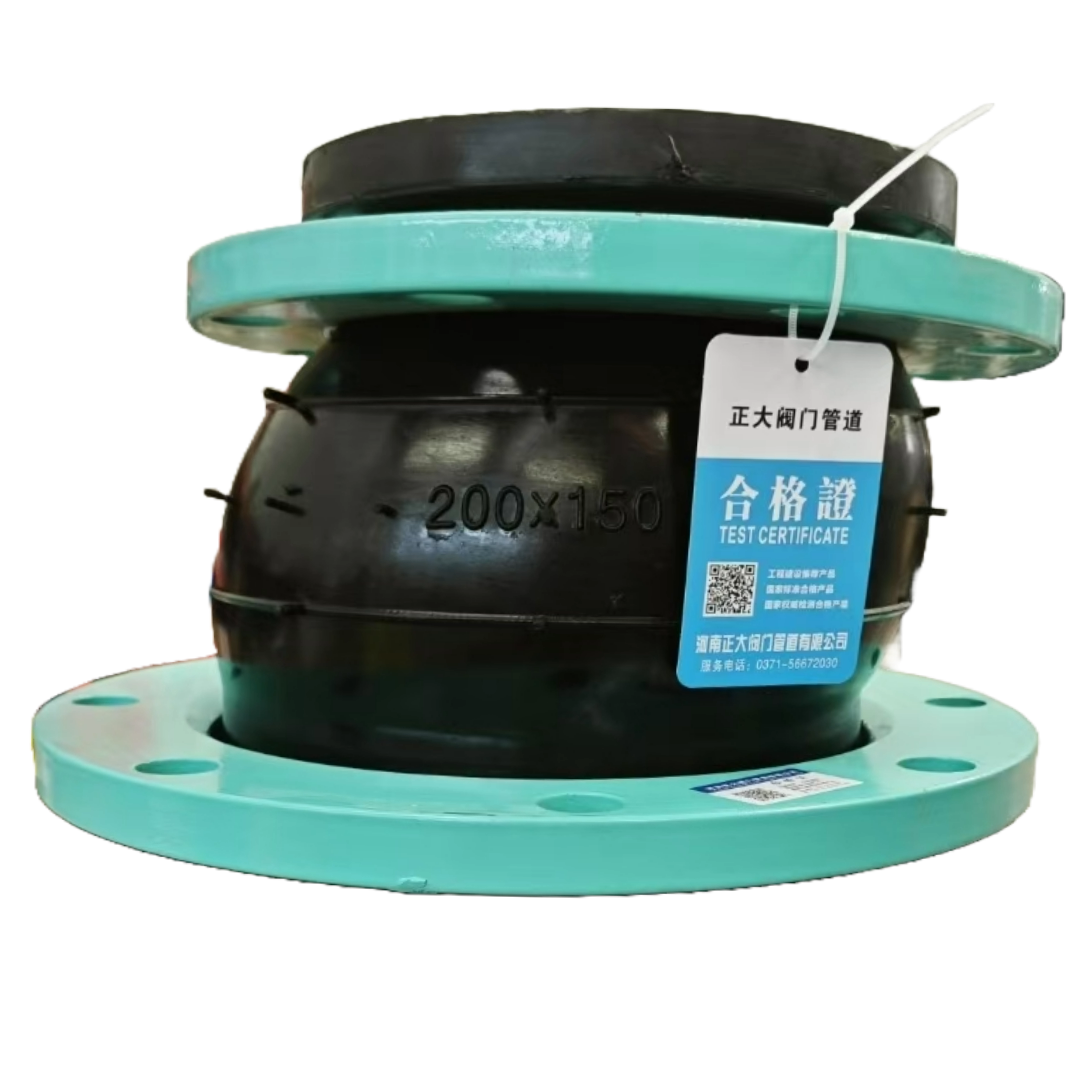

Eccentric Rubber Reducer Joint
The Rubber Eccentric Reducer Joint, also known as Eccentric Rubber Expansion Joint or Offset Rubber Reducer, is designed to connect pipelines with different diameters while ensuring a smooth flow direction. Its offset design avoids air pockets and flow turbulence, making it ideal for horizontal pipelines, pump inlets, and drainage systems. It provides excellent vibration absorption, displacement compensation, and alignment correction.
Key Features
• Eccentric Structure – Prevents air entrapment and ensures smooth horizontal flow.
•Size Transition – Connects pipes of different diameters flexibly.
•Displacement Absorption – Compensates for thermal and mechanical movement.
•Corrosion Resistance – Suitable for water, oil, chemical, and wastewater media.
•Easy Installation – Aligns misaligned pipes and saves labor cost.
•Also Known As – Rubber Offset Coupling, Eccentric Expansion Joint, Flexible Eccentric Connector.
Technical Specifications
| Nominal Diameter (DN) | Inch | Length (L) mm | Flange Thickness (b) mm | Bolt Qty (n) | Bolt Hole Dia. mm | Bolt Circle Dia. (D1) mm | Axial Extension mm | Lateral Displacement mm | Angular Deflection (°) |
|---|
| DN32×25 | 1¼”×1″ | 95 | 16 | 4 | 18 | 100 | 6 | 9 | 9 |
| DN40×32 | 1½”×1¼” | 95 | 18 | 4 | 18 | 110 | 6 | 10 | 9 |
| DN50×40 | 2″×1½” | 105 | 18 | 4 | 18 | 125 | 7 | 10 | 10 |
| DN65×50 | 2½”×2″ | 115 | 20 | 4 | 18 | 145 | 7 | 13 | 11 |
| DN80×65 | 3″×2½” | 135 | 20 | 4 | 18 | 160 | 8 | 15 | 12 |
| DN100×80 | 4″×3″ | 150 | 22 | 8 | 18 | 180 | 10 | 19 | 13 |
| DN125×100 | 5″×4″ | 165 | 24 | 8 | 18 | 210 | 12 | 19 | 13 |
| DN150×125 | 6″×5″ | 180 | 24 | 8 | 23 | 240 | 12 | 20 | 14 |
| DN200×150 | 8″×6″ | 210 | 24 | 8 | 23 | 295 | 16 | 22 | 14 |
| DN250×200 | 10″×8″ | 230 | 26 | 12 | 23 | 350 | 16 | 25 | 14 |
| DN300×250 | 12″×10″ | 245 | 28 | 12 | 23 | 400 | 16 | 25 | 14 |
| DN350×300 | 14″×12″ | 255 | 30 | 16 | 23 | 460 | 16 | 25 | 22 |
| DN400×350 | 16″×14″ | 255 | 30 | 16 | 25 | 515 | 16 | 25 | 22 |
| DN450×400 | 18″×16″ | 255 | 30 | 20 | 25 | 565 | 16 |
| Project | Unit | ERJ-1 | ERJ-2 | ERJ-3 |
|---|
| Model | – | ERJ-1 | ERJ-2 | ERJ-3 |
| Working Pressure | MPa (kgf/cm²) | 1.0 (10) | 1.6 (16) | 2.5 (25) |
| Burst Pressure | MPa (kgf/cm²) | 2.0 (20) | 3.0 (30) | 4.5 (45) |
| Vacuum Resistance | KPa (mmHg) | 53.3 (400) | 86.7 (650) | 100 (750) |
| Operating Temperature | °C | -15 ~ 115°C (Special: -30 ~ 250°C) | -15 ~ 115°C (Special: -30 ~ 250°C) | -15 ~ 115°C (Special: -30 ~ 250°C) |
| Applicable Media | – | Air, Compressed Air, Water, Seawater, Hot Water, Oil, Acid, Alkali, etc. | Air, Compressed Air, Water, Seawater, Hot Water, Oil, Acid, Alkali, etc. | Air, Compressed Air, Water, Seawater, Hot Water, Oil, Acid, Alkali, etc. |
| Material | Temperature Range (°C) | Oil Resistance | Acid & Alkali Resistance | Elasticity | Abrasion Resistance | Typical Applications |
|---|
| EPDM | -40 ~ 120 | Poor | Excellent | Excellent | Medium | Water, Steam, Air |
| NR (Natural Rubber) | -30 ~ 80 | Poor | Medium | Excellent | Excellent | Industrial Water, Air |
| NBR | -20 ~ 100 | Excellent | Medium | Good | Good | Oil, Lubrication Systems |
| Neoprene | -35 ~ 100 | Good | Good | Medium | Good | Seawater, Mild Chemicals |
| Silicone | -60 ~ 200 | Poor | Poor | Good | Low | Food Grade, Medical |
| FKM (Viton) | -20 ~ 250 | Excellent | Excellent | Medium | Excellent | Chemical, High Temp Oil |
| Butyl (IIR) | -40 ~ 120 | Poor | Good | Excellent | Medium | Gas, Acidic Gases |
1.Inspection Before Installation
•Check whether the rubber joint is damaged, aged, or defective.
•Confirm the model, pressure rating, and flange size match the system requirements.
2.Installation Environment
•Avoid installation under direct sunlight, ozone, or in environments with high temperature or strong corrosive chemicals.
•If outdoor installation is necessary, use UV-protective shields or covers.
3.Installation Instructions
•Align the rubber joint with the center of the pipe flanges. Avoid pulling or twisting during installation.
•Tighten bolts crosswise and evenly to avoid uneven force or deformation.
•Use proper washers and gaskets.
4.Precautions
•Ensure the pipeline is properly fixed; rubber joints are not designed to bear the full weight.
•Do not over-extend, over-compress, or apply excessive torsion to the joint.
•Allow for movement as specified (axial, lateral, angular) within rated limits.
•Install limit rods or anti-pull devices if the pipe system lacks sufficient fixation.
5.Working Pressure & Temperature
•Observe the rated pressure and temperature range during operation.
•Standard range: -15°C to +115°C (or as specified).
6.Routine Inspection & Maintenance
•Inspect every 6–12 months for signs of aging, damage, or leakage.
•Replace if any abnormalities are found.
1. Inspection Before Installation
•Check whether the rubber joint is damaged, aged, or defective.
•Confirm the model, pressure rating, and flange size match the system requirements.
2.Installation Environment
•Avoid installation under direct sunlight, ozone, or in environments with high temperature or strong corrosive chemicals.
•If outdoor installation is necessary, use UV-protective shields or covers.
3.Installation Instructions
•Align the rubber joint with the center of the pipe flanges. Avoid pulling or twisting during installation.
•Tighten bolts crosswise and evenly to avoid uneven force or deformation.
•Use proper washers and gaskets.
4.Precautions
•Ensure the pipeline is properly fixed; rubber joints are not designed to bear the full weight.
•Do not over-extend, over-compress, or apply excessive torsion to the joint.
•Allow for movement as specified (axial, lateral, angular) within rated limits.
•Install limit rods or anti-pull devices if the pipe system lacks sufficient fixation.
5.Working Pressure & Temperature
•Observe the rated pressure and temperature range during operation.
•Standard range: -15°C to +115°C (or as specified).
6.Routine Inspection & Maintenance
•Inspect every 6–12 months for signs of aging, damage, or leakage.
•Replace if any abnormalities are found.
What kind of documents are included with the shipment?
We provide a full set of export documents, including packing list, commercial invoice, product test report, and material certificate. Custom clearance documents are also available upon request.
What sizes and materials are available for rubber expansion joints?
Our rubber joints are available in sizes from DN32 to DN1200, and materials include EPDM, NBR, Neoprene, PTFE-lined rubber, and food-grade silicone. Custom materials are available for specific industries.
Can you produce customized rubber joints according to our drawing?
Yes. We support OEM and ODM services. Just send us your drawing or specifications, and our technical team will provide a matching solution with fast production.
